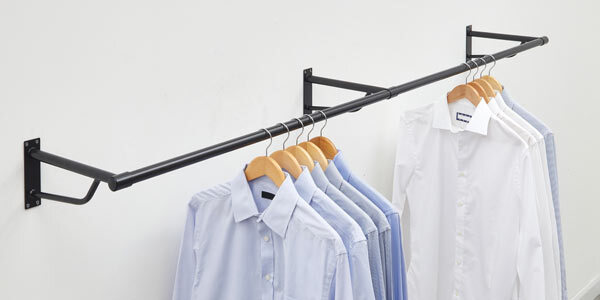

Assembly Guide: Wall-Fix Hanging Rails
This guide covers all aspects of assembly for products in our Wall-Fix Hanging Rails range:
- Alcove Rails
- Suspended Rails
- Wall Mounted Rails
Customisable: Your Hanging Rail system can always be extended or shortened in the future to suit your space. We offer components separately for this. Please note, you can cut the tubes to suit your space but they are unable to be returned to us if they have been trimmed.
Complementary Products: We have a range of accessories and similar products, such as Shelf and Hanging Rail Kits, to create a unique display and shelving unit. We also have a large variety of Clothes Hangers available to complete your clothes storage system and/or wardrobe.
Wall Fixings: Fixings are NOT included in Hanging Rail kits. You can order Masonry Fixings separately or for more information on wall fixings, view our Wall Fixings Guide.
Assembly Video (2m:03s)
Important Safety Information
- Read through all instructions on this page before beginning any assembly
- Before commencing assembly, unpack carefully and check you have all components
- If you think that you have received defective parts, please do not use and contact us
- Assembly will void returns, except if a manufacturing fault is found
- If you are unsure about assembly, please ask our team or a professional
- Do not overload your rails
- Assembly is done at your own risk
Tools Required
- Tape measure
- Spirit level
- Power drill
- Screwdriver
- Pencil
- 3mm Allen Key
- Pilot drill bit
- Masonry drill bit
- Rawl plugs*
- Screws*
* Fixings are NOT included as you may require different fixings depending on the type of wall you are planning to fit this to. Please consult a professional for further advice if required.

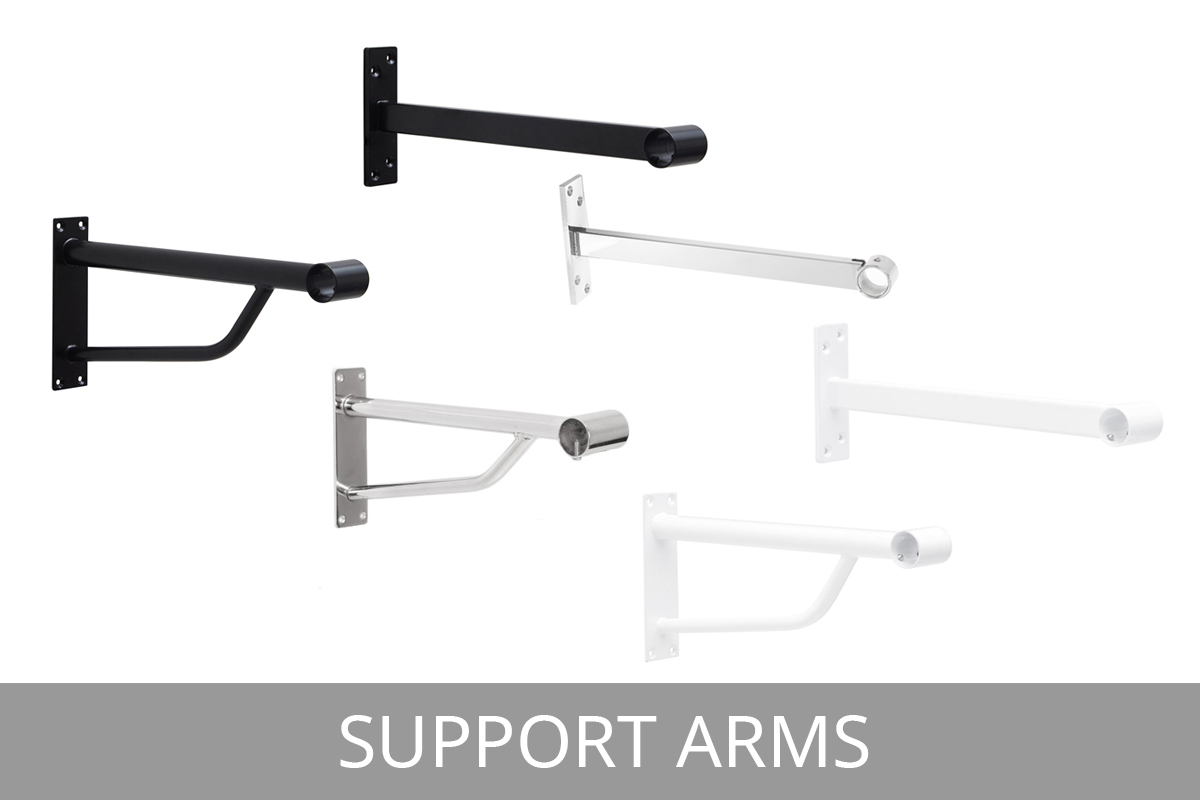

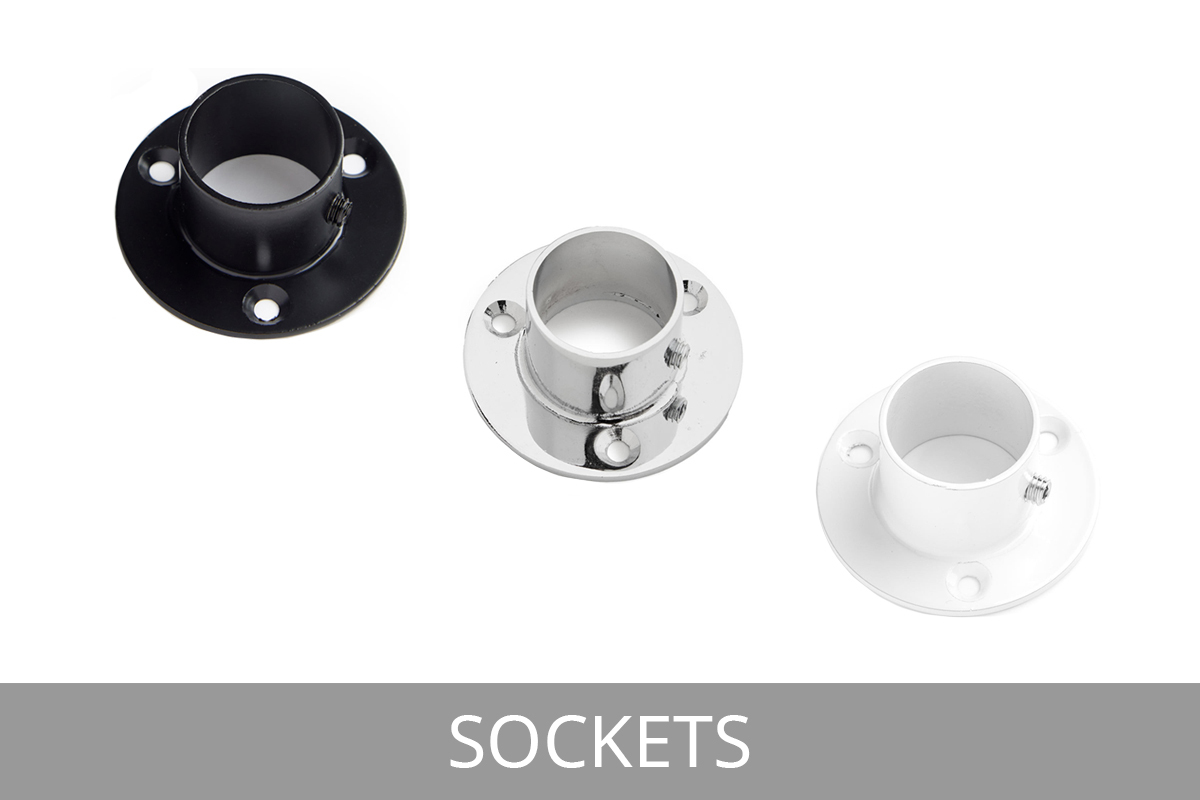

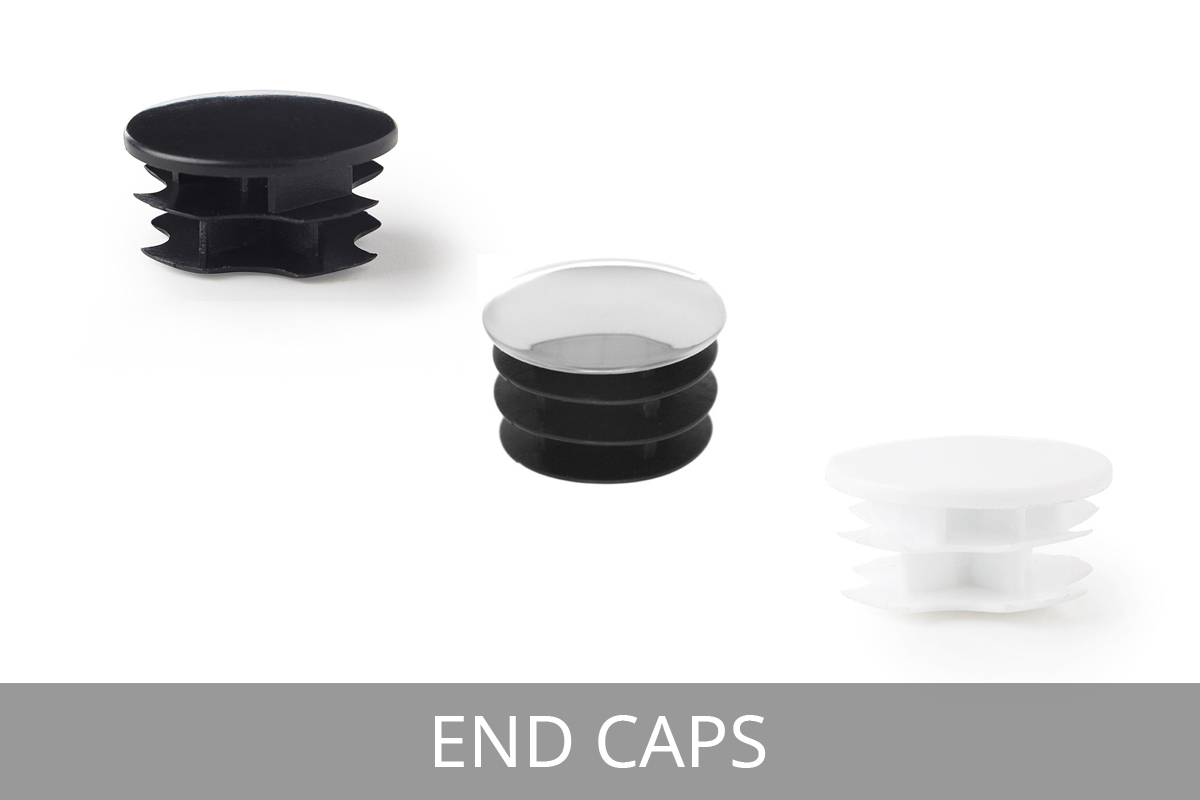

Components in your Box
Depending upon which arrangement you have purchased, these are some of the parts included - check your product’s page for a list of individual components on specific kits. If you need help selecting the right items, speak to us.
These are the most common components and parts we offer and that may be in your Hanging Rail kit. There may be some variations and specific components, which are not shown below. To view our full selection of components, check out our Wall-Fix Hanging Rails Components section.
Things to note before Assembly

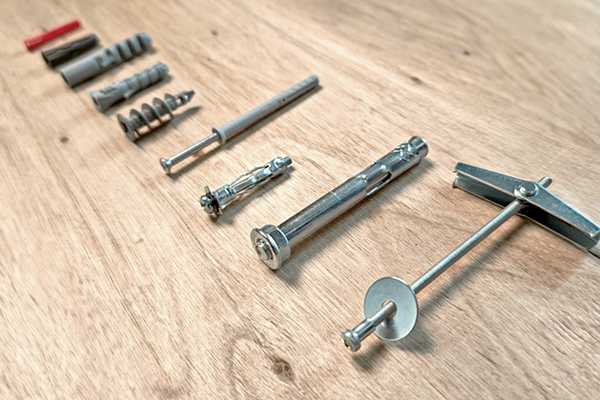

Make sure you are using suitable fixings
Different wall types will require different fixings, to ensure that anything mounted will stay safely secure. This is especially important if mounting anything that will be holding any type of loading.
View our Wall Fixings Guide for more information.

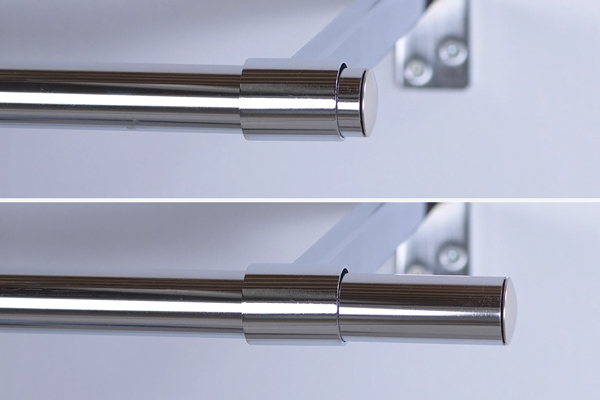

Tubes can overhang or be set flush
Tubes (also referred to as Poles or Rails) should meet equally in the middle of the brackets, if applicable, and the end of the Tubes can be set flush or so that they overhang by 10%.

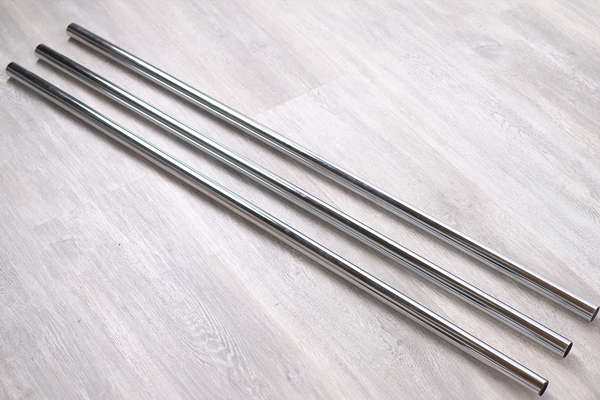

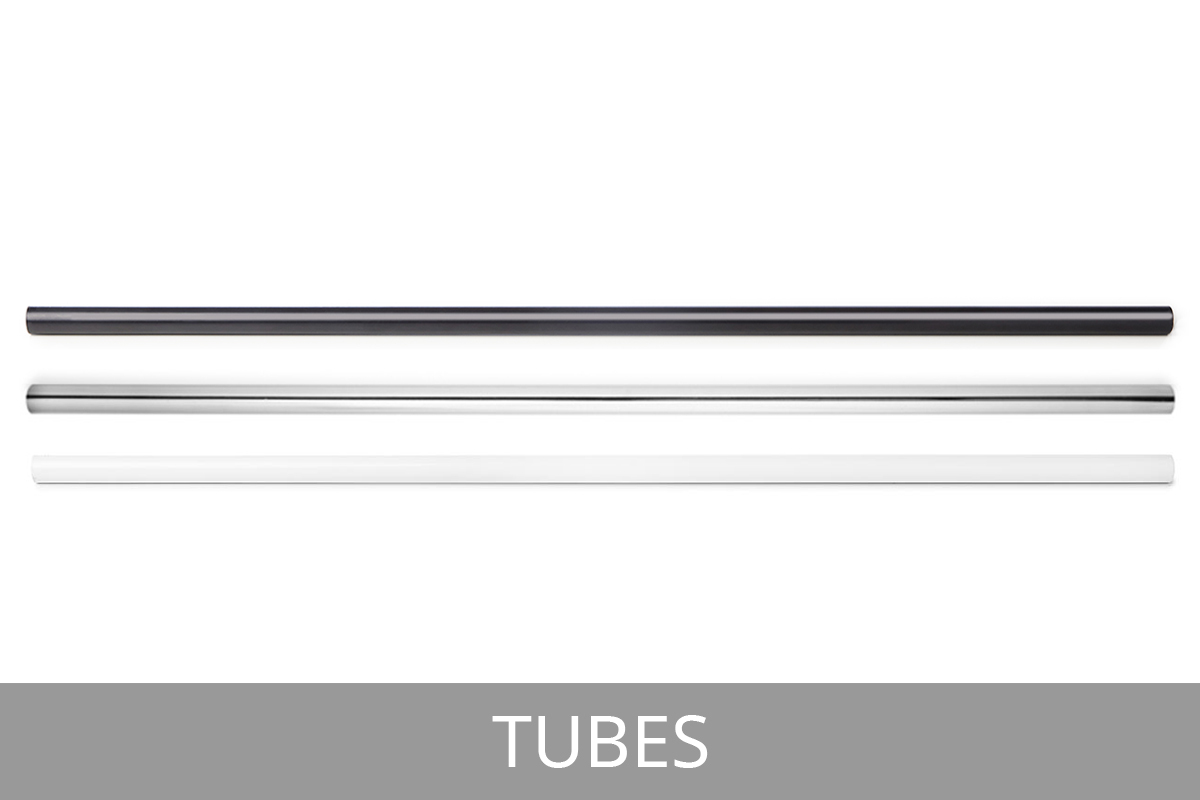

Tubes come in 600mm or 1m lengths
You'll receive Tubes in 600mm or 1m sections. This makes it easier to fix into different spaces. You can shorten/extend your Hanging Rail system in the future for a custom system, using additional components or by trimming tubes*.
*Note, cut Tubes cannot be returned to us.
Starting of Assembly

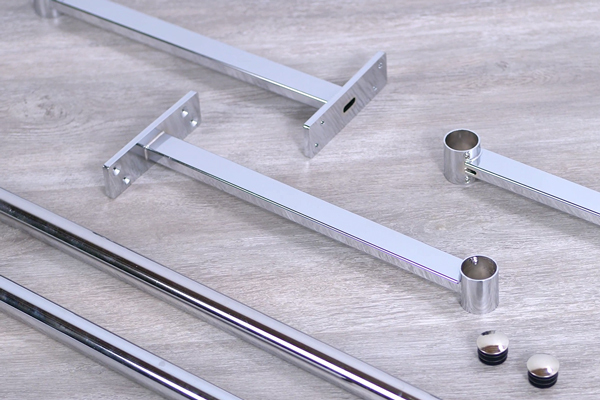

Check your components
We recommend starting by setting out all components out in front of you, to make finding everything easy.
The components you have will vary depending on the unit. You can find detailed information on this on the product pages.

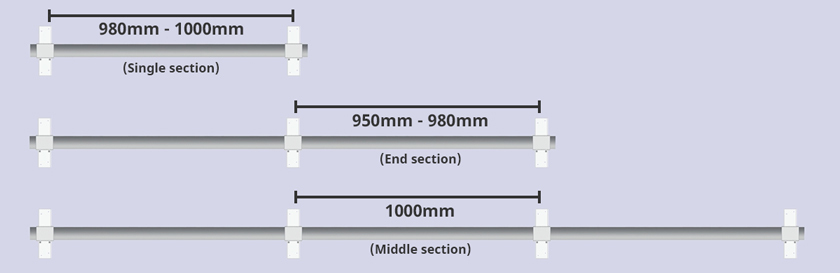

Work out spacing of Brackets/Arms
If you have multiple arms for a longer Hanging Rail, work out the spacing for the brackets on the wall, following these recommendations or in the video.
For a single section, we recommend allowing a space of 980mm - 1000mm between Arms.
For an end section, we recommend allowing a space of 950 - 980mm (depends on how much overhang you'd prefer).
For a middle section, we recommend allowing a space of 1000mm.
Wall-Mounted Rails Assembly

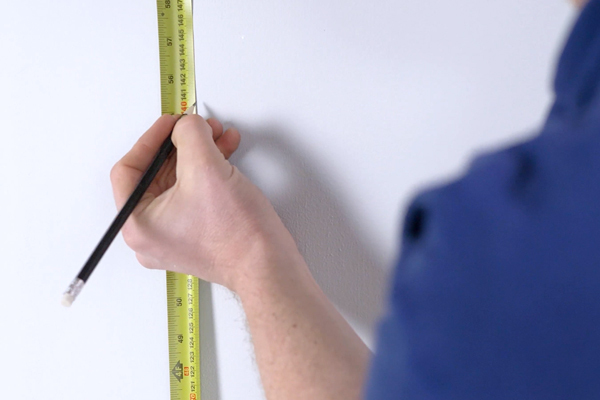

1. Begin marking up
Measure and mark up where you want to place your rail and the Support Arm accordingly. Follow the guidelines in the previous step for suggested spacing.

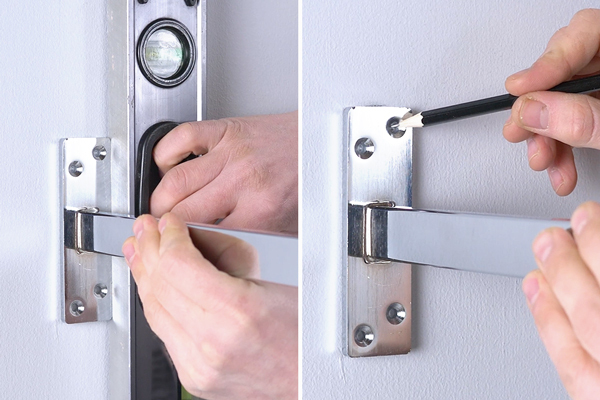

2. Line up the first Support Arm
Take your first bracket (if you have multiple) and line it up with the mark. Using a spirit level, check your line is plumb and then mark bracket holes.

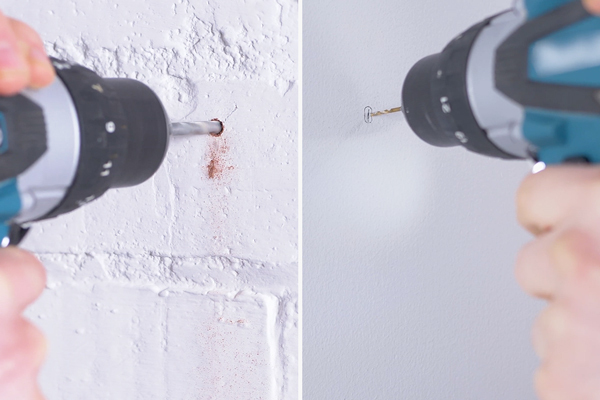

3. Drill holes
Drill a hole for each mark to insert rawl plugs (aka. wall plugs). Remember to use equipment and fixings suitable for your wall type.

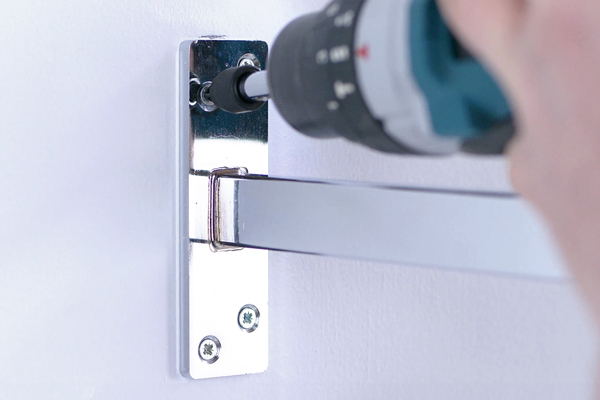

4. Screw the Arm to the wall
Secure the Support Arm to the wall.

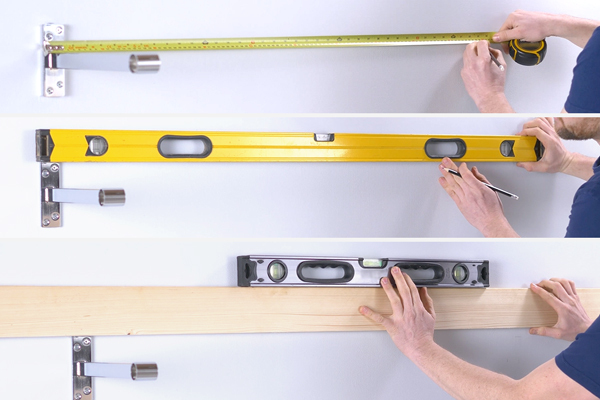

5. Fit second Arm
Measure up for the second Support Arm, using a spirit level to help mark the top of the Arm. If you don't have a long level, use a straight piece of wood.
6. Repeat as required
Repeat the previous steps if you have multiple support arms.

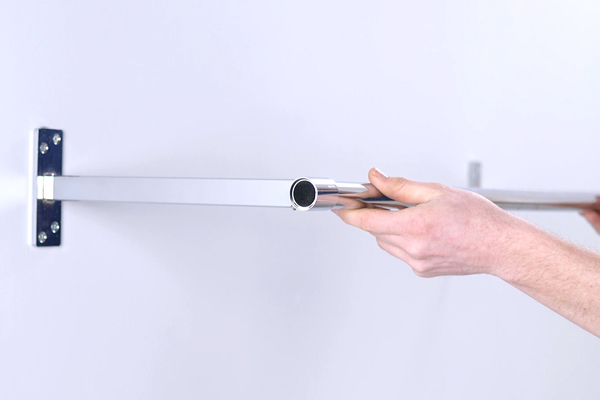

7. Insert Tubes into Support Arms
Thread the Tube/s through the Arms. Remember that if you have multiple rails, Tubes should meet equally in the middle of the brackets (if not on the end).

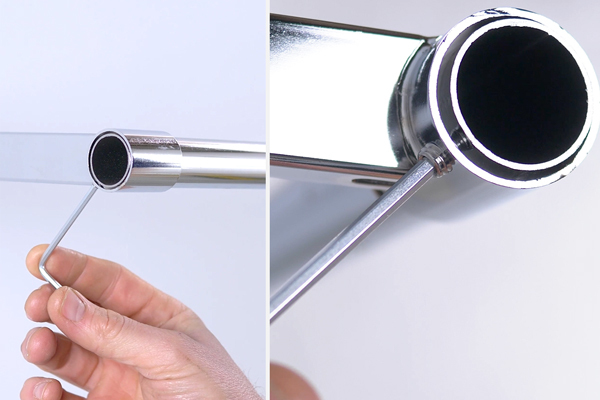

8. Tighten grub screws
Using a 3mm allen key, tighten up the grub screws on the Support Arms to secure the rails.

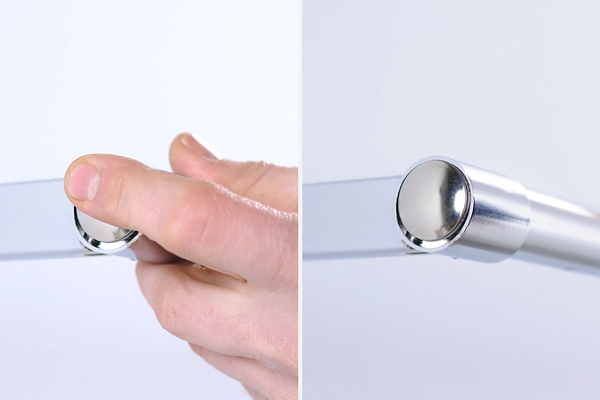

9. Add End Caps
Push in the End Caps onto the end of the Tubes to finish your Hanging Rail.
Alcove Rails Assembly

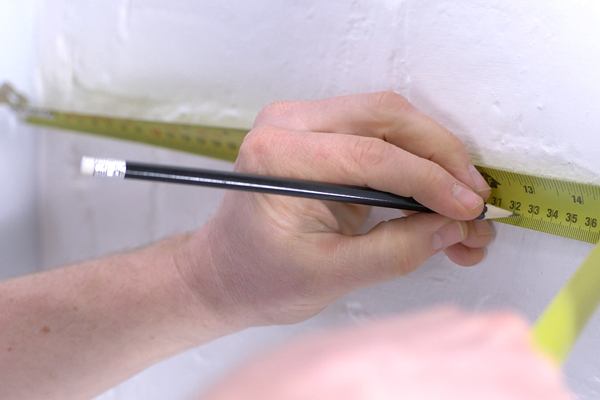

1. Measure for the Socket
Measure and mark from the wall where you require the Socket. With a Standard Support Arm, the rail is held 325mm from the wall.
2. Line up the first Support Arm
Take your first Arm (if you have multiple) and using a spirit level, check your line is plumb and then mark bracket holes.
3. Drill holes
Drill a hole for each mark to insert rawl plugs (or wall plugs). Remember to use equipment and fixings suitable for your wall type.
4. Screw the Arm to the wall
Secure the Support Arm to the wall.
Repeat these steps (outlined in Wall-Mounted Rails Assembly) as required.

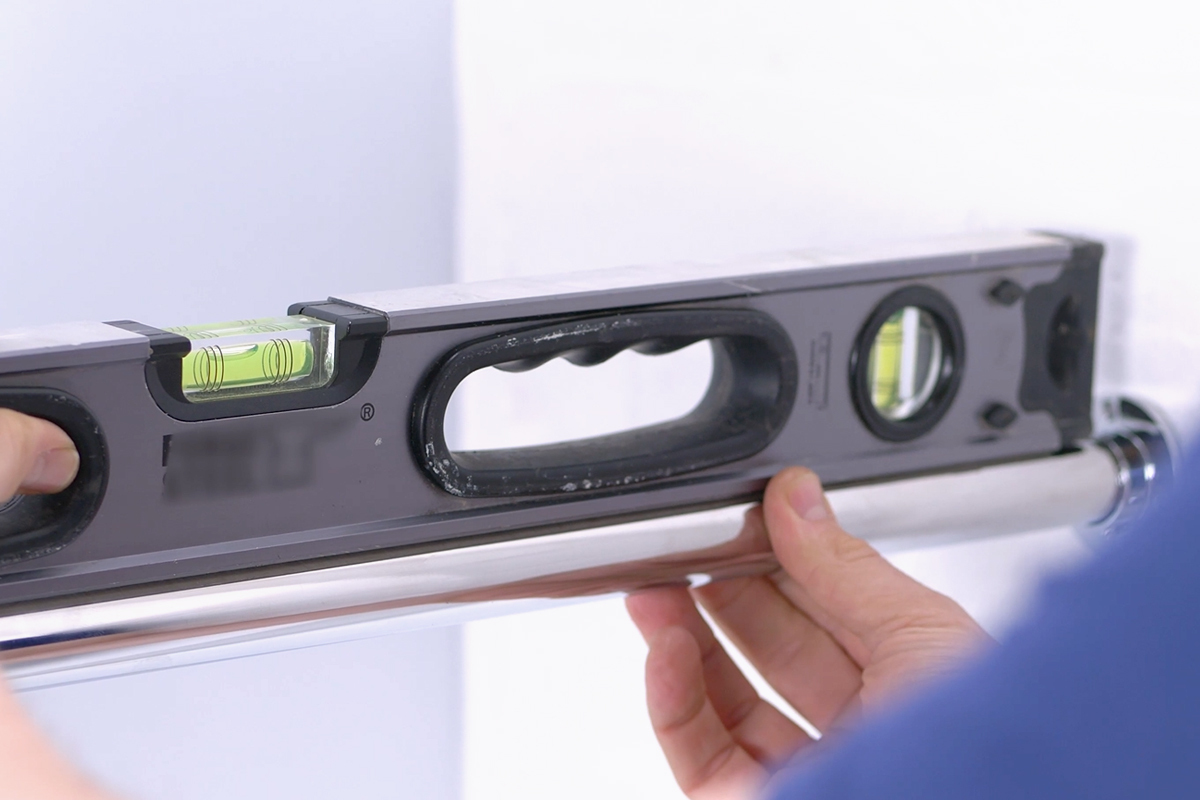

5. Insert the Rail into the Socket
After installing the Support Arm/s, attach the Tube to the Socket. Line up the Socket, checking you're horizontal with a spirit level.

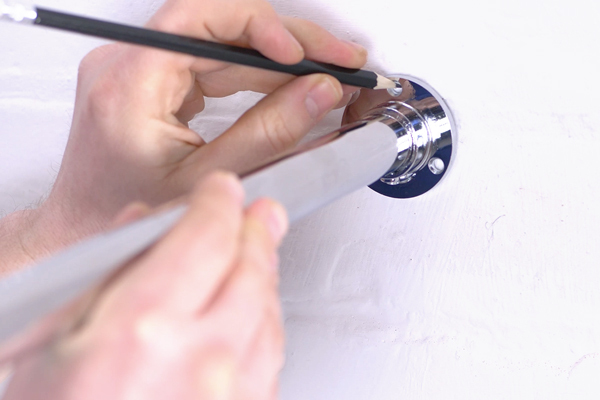

6. Mark wall and drill
Mark up wall for drill holes for the screws, to fit the Socket. Drill a hole for each mark to insert rawl plugs.

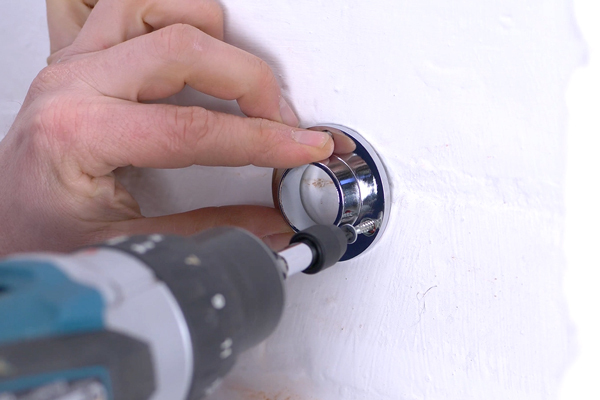

7. Attach the Socket to the wall
Secure the Socket to the wall.

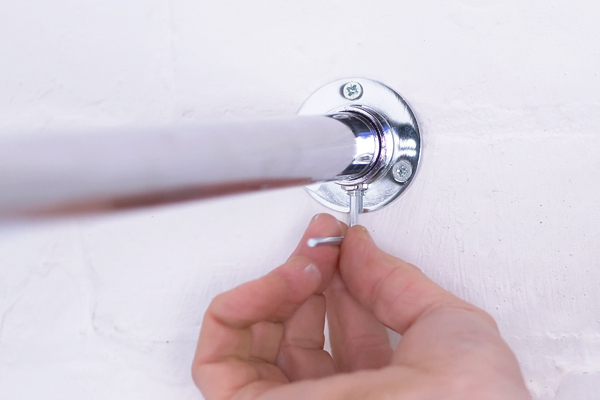

8. Secure Tubes
Insert the Tubes into the Sockets and tighten grub screws using a 3mm allen key to secure.
We hope you found this guide useful and successfully assembled your Wall-Fix Hanging Rails.
If you have any questions, feel free to call us on 01258 650 946 or email sales@shopfittingwarehouse.co.uk and we will be happy to help.
If you have any feedback on this guide, please Email Support and let us know.
