RETAIL SHELVING GUIDE
The choice of the professional; ideal for creating sturdy and functional wall, gondola and corner shelving displays.
If your shelving requirements grow, it can be easily reconfigured and extended. Our retail shelving uses the standard 50mm pitch system, which means it is compatible with existing shelving used throughout Europe.
Choose from our ready-made kits or create your own. Single units are available in three heights: 1,400mm, 1,800 mm and 2,100mm and two widths: 1,000mm and 1,250mm making it easy to coordinate and combine.
Colours & Finishes
As standard, we offer this professional shop shelving range in the most popular colours:
Jura White (RAL 9001), Silver (RAL 9006), Dark Grey (RAL 7015) and Black (RAL 9005).
However, you can take advantage of an extended choice of over 30 custom RAL colours and finishes to suit your retail space or brand colours. Please allow for additional leadtimes for these bespoke options.
Base Legs & Uprights
Choose Base Legs from a range of depths, and Uprights from a range of heights.
All Base Legs have adjustable feet, for ensuring a stable unit, even on uneven floors. The different depths allow you to decide how far you want the base of the unit to come out, while the uprights are the main factor for the height of the unit.
End of Runs & Bays
When building a run or a bay, units will share components, specifically an upright and base leg.

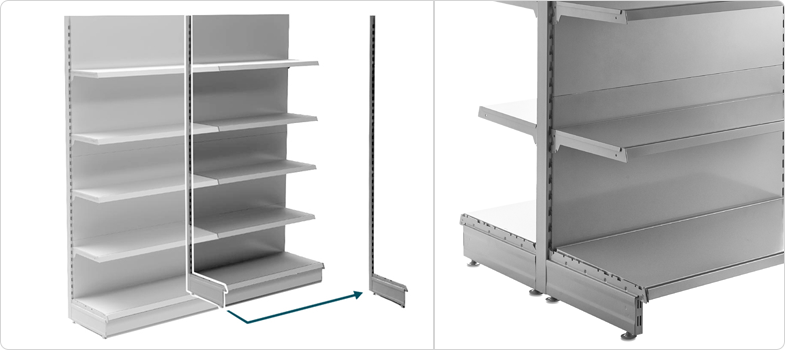

For example, two units share the middle upright and base leg (see below). So, to extend a unit, you only need to add one upright and one base leg for the end of the run, along with any other required components or accessories.
Shelves, however, do not share brackets, so each shelf will need its own pair of brackets.
For gondolas, a unit requires a base leg and a back panel on each side, both of which attach to the upright as usual.
Back Panels

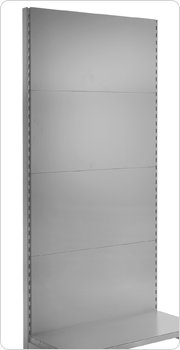

Plain Back Panels are available in a range of widths and heights, providing a neat backdrop.

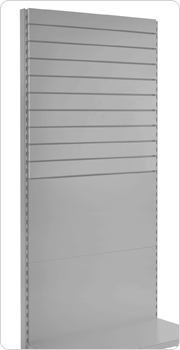

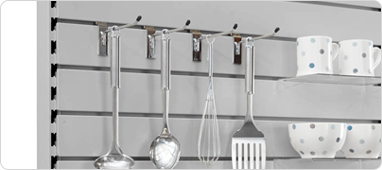

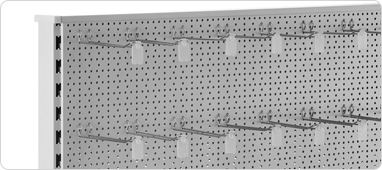

Perforated Panels and Slatwall panels come in different widths, and they increase the versatility of units, allowing for hanging displays.

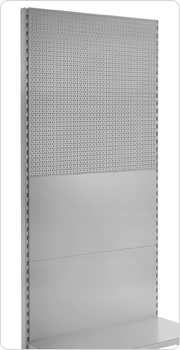

Arranging Back Panels
Mix-and-match and combine back panels for bespoke shelving and displays.
These can also be easily changed in the future, if you decide that you'd like to update and refresh your unit.

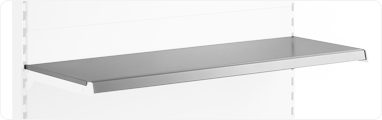

Brackets & Shelves

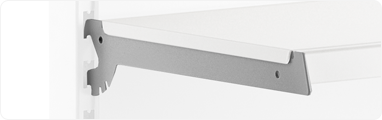

Shelf Brackets are available in a range of depths, whether you'd prefer even shelves or staggered shelves.
Like the other main components, Shelves are durable and easy-to-clean - exactly what you need in a busy commercial environment.

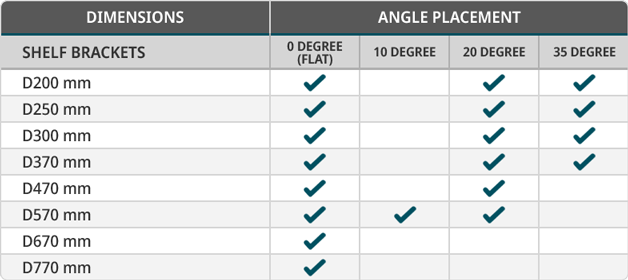

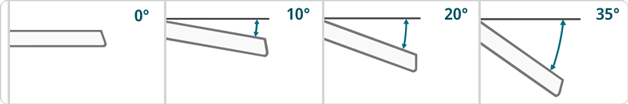

Bracket & Shelf Angles
Specific shelf bracket sizes, can be placed at angles.
Pair this configuration with risers and dividers, so products are secured.

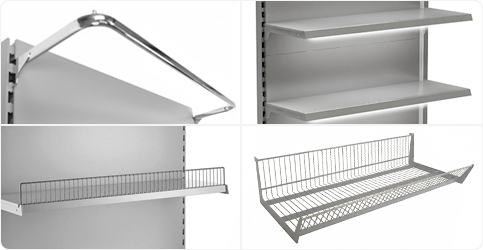

Kick Plinths, EPOS Ticket Strips & More

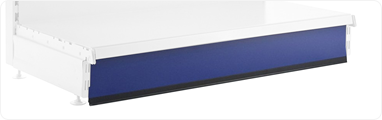

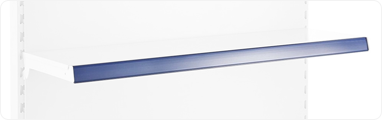

Kick Plinths cover the gap between the base shelf and floor, while EPOS Ticket Strips or Edges allow you to add pricing/information. Both are available in a range of colours.
Other components you can add include, LED's, D-Rails for clothes and Dividers.
